Energy in a Nutshell

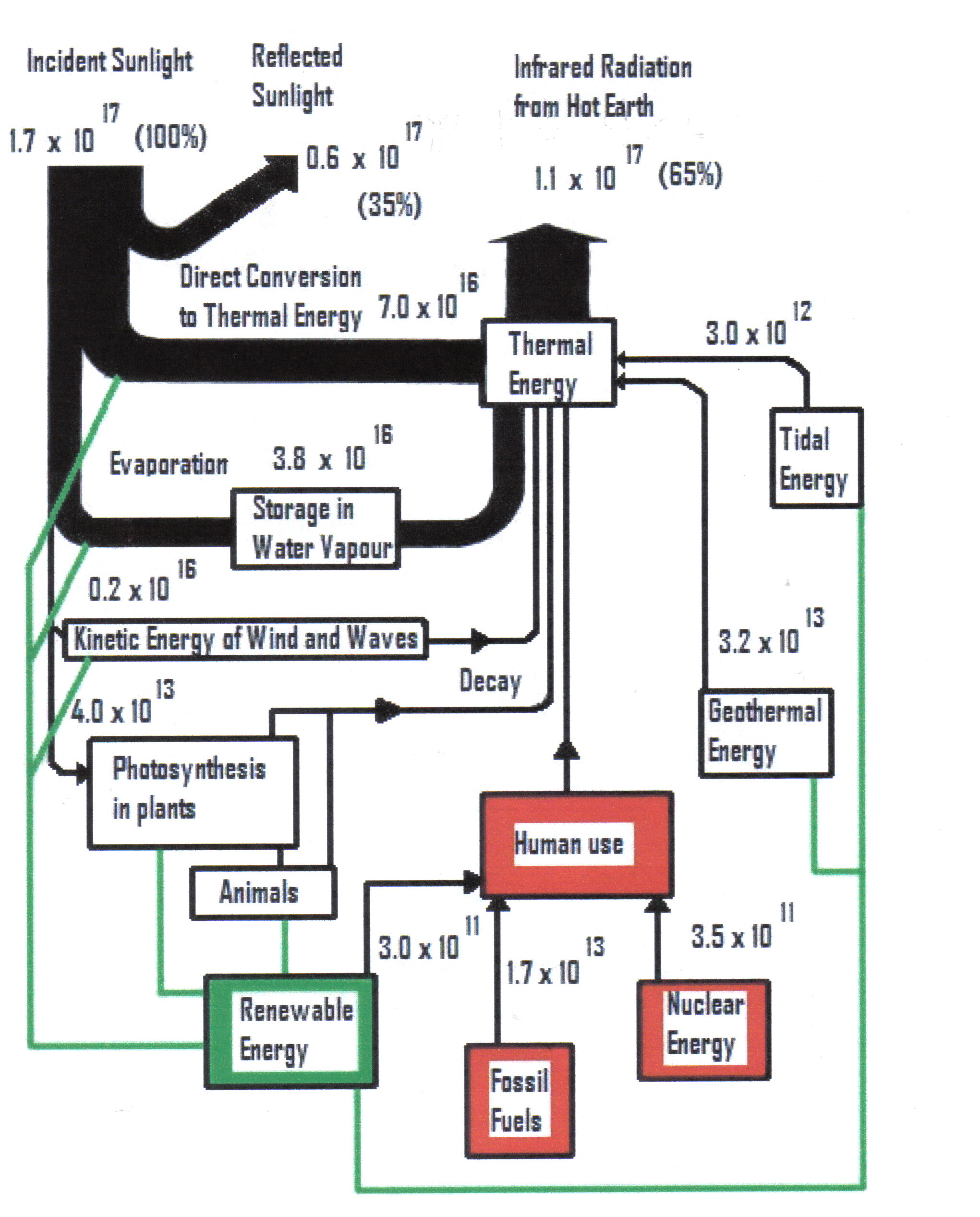

World energy flow is depicted on the diagram below and for many millennia there was a balance between incoming energy from the sun (rate of energy flow = 1.7 x 1017 Watts) and that leaving through either direct reflection or via infra red (IR) radiation from a "hot" earth. The diagram, in this simplified form, showed that humankind was in harmony with nature and that the small amount of energy used humans, for fires, windpower (perhaps) and the like, had a negligable effect on the energy balance.

Food for humans was provided from plants and animals and the sunlight gave warmth. The sun is, indeed, an enormous energy source as it heats the earth up to temperatures close to 20 oC so sustaining plant and animal life.

As time progressed the simple energy diagram has become more complex with two new sources of energy appearing :- fossil and nuclear fuels. Both these are finite resources and will eventually be depleted and renewable energy will then be the only option for the peoples of the world. In the meantime, however, it has been noticed that burning fossil fuels has put large amounts of carbon dioxide into the atmosphere and this acts as a blanket around the earth -- still letting  about 2/3 of the sun's radiation IN to heat up the earth but not allowing as much heat radiation OUT; (a greenhouse does exactly the same -- so we call this the "greenhouse effect") . However on the above diagram we see another effect as about 1/3 of the sun's radiation is reflected and doesn't participate in the energy balance. Now the reflection depends crucially on the snow and ice covered regions of the earth - once these areas diminish then less radiation is reflected and the planet becomes even warmer by entering into a positive feedback cycle. We are now in this cycle and a mean temperature rise of THREE degrees will tip the world into instability and produce an unimaginable change in our climate.

(Note - there are some very large numbers involved with global energy but we see how easily these are generated. The global population is approximately 7.5 billion. If each person had a "one-bar" electric fire ( 1kW ) switched on all the time then the total global use of electricity would be: 7.5 x 109 multiplied by 1 x 103 giving 7.5 x 1012 W )

Pre-industrial era. Any energy that humans used presented no problems as only the RENEWABLE ENERGY box (GREEN BOX) was included in the energy flow; plants for food, timber for burning or construction and animals for transportation or doing work or food products. It was a sustainable existence for mankind and nature.

Civilizations grew up under this regime - Egyptians, Chinese, Incas, Greeks, etc -with cultural and social developments occurring. Immense feats of construction were carried out - Pyramids, Wall of China, Machu Picchu, Parthanon - not to mention the construction of cities and towns with many magnificent state buildings, palaces, homes and places of worship throughout the world.

Wind and water power were harnessed as sources of energy and drying commodities in sunlight has been used from time immemorial.

Industrial era Nineteenth century life has led to the box FOSSIL FUEL being added to the diagram and over these recent years the increasing use of fossil fuels (coal, oil and gas) has changed the way the earth looses its heat. Since the gas carbon dioxide, CO2 a by-product of burning fuel, interacts with the IR emitted radiation the so-called greenhouse effect has arisen and the earth is getting hotter. If the ice caps melt at the North and South Poles then the Reflected Sunlight (6 x 1016Watts on the diagram) becomes less and hence this will further add to global warming leading to more ice cap melting - it is a process that feeds on itself and behaves like a chain reaction. Thus we see that in the last few decades the earth has been driven into severe imbalance.

The energy box NUCLEAR ENERGY has arisen since the late 1950's and, as yet, no one has developed a safe strategy of containing radioactive nuclear waste. There is no CO2 involved with nuclear power and therefore this form of energy looks to be a likely saviour for the environment. However, other threats such as radioactive material finding its way into the hands of terrorists could be equally damaging to the survival of the human race. Using Breeder Reactors will extend the supply of nuclear fuel as it provides a method of converting U238 to a fissile material but this technology is still in its infancy. ENERGY FROM FUSION will remain a scientific curiosity for a considerably long time so we cannot rely on fusion to satisfy our immediate needs.

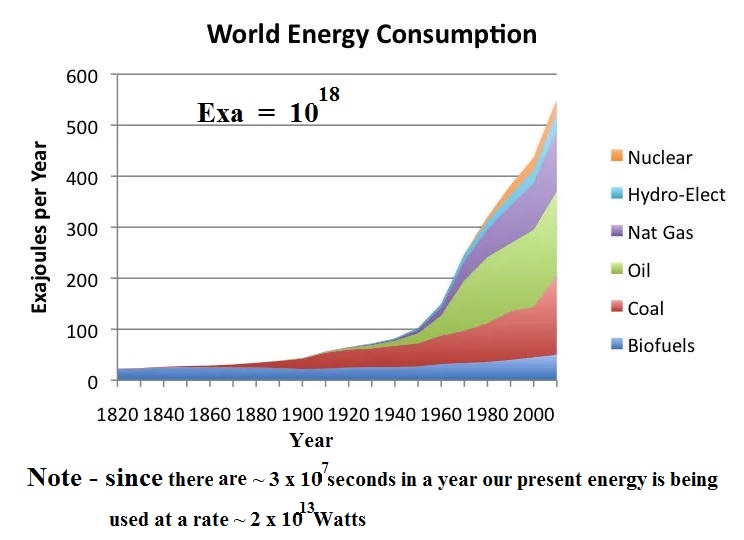

Industrial and Information era One could hope that the information era would help to lower our energy needs. However, this can only give savings at a fairly modest level. Working from home, say, will cut traveling cost but the home may need heating for longer periods. With Smart metering one may achieve greater efficiency in energy use but, again, the savings will be modest.               The following graph indicates that we rely heavily on fossil fuels at the moment:

On reading the above one can't help thinking that civilization had matured largely by 1900 without using fossil fuels at all and, our last 100 years or so, has added little to the stature of humankind. We have given way to pleasure seeking on a gigantic scale and communications (through either electronic means or via transportation) has made the world into a global village, more people are certainly living longer but are often confined to "homes" for the last decade of their lives.

You must judge for yourselves whether or not humankind is on a pathway to destruction - the centrury 1950 to 2050 will most certainly decide our future.

To summarize, the long term future has to rely on RENEWABLE ENERGY as fossil and nuclear fuels are only finite resources and will eventually run out. The diagram shows that there is a rich diversity of renewable options ( green connecting lines ) - sunlight, water and wind, biomass and tidal and geothermal. It has to be acknowledged that these sources are not in a nice concentrated form that is the case for fossil or nuclear fuels but they are sustainable. As the past has shown, civilization was established with these energy sources.

One of the biggest worries is that the environment is presently being so badly damaged that the earth will not be capable of supporting plant, animal and human life as it did in those pre-twentieth century times.
